Messerschmitt Bf 110 F
Close Up

by Arne Badent

Click here to visit Squadron.com
HyperScale is proudly supported by Squadron



Description

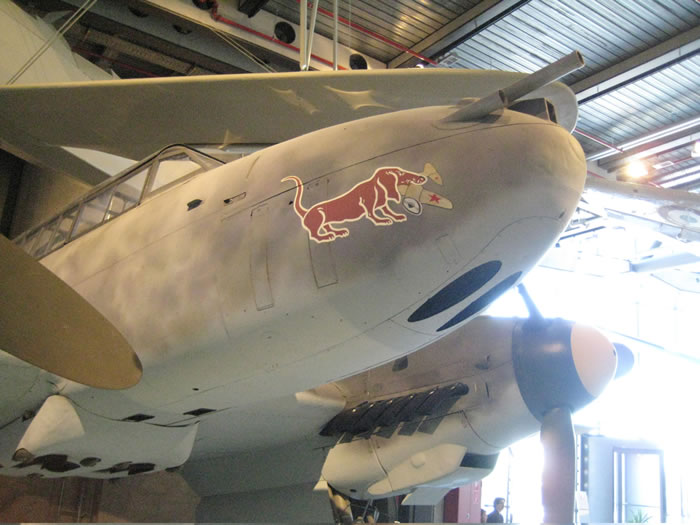

Here are some photos of the Messerschmitt Bf 110 F on display at the Deutsches Technikmuseum Berlin.

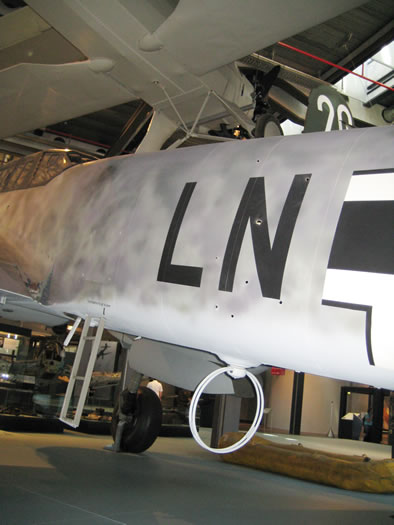

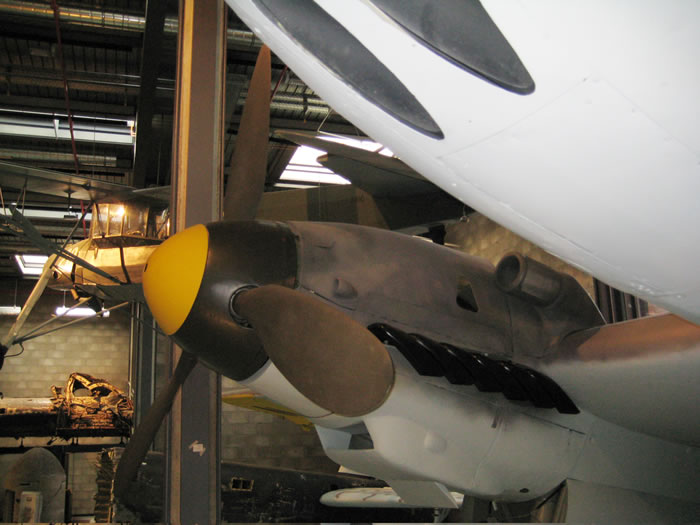

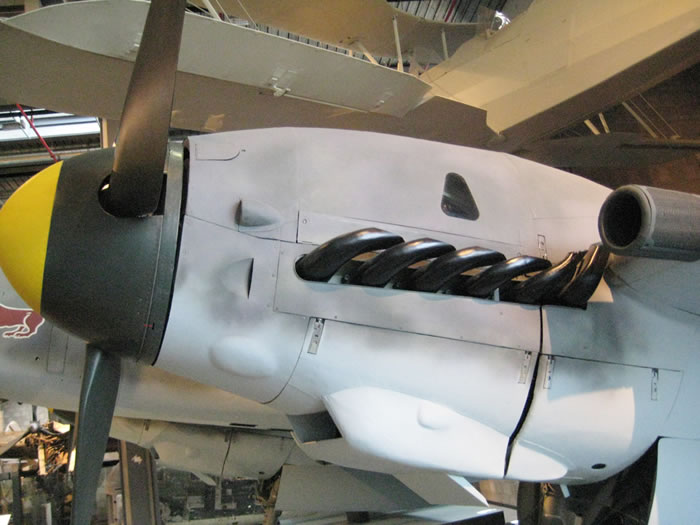

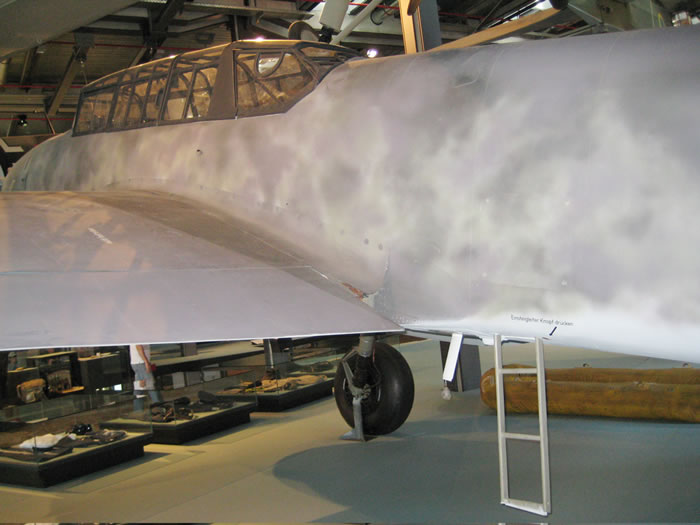

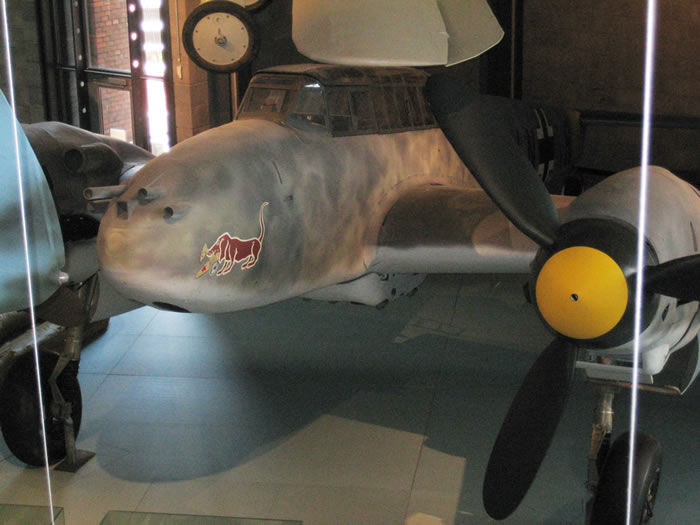

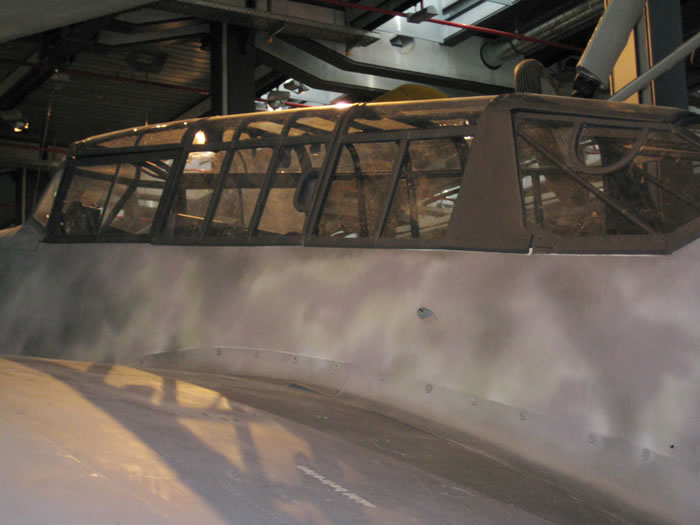

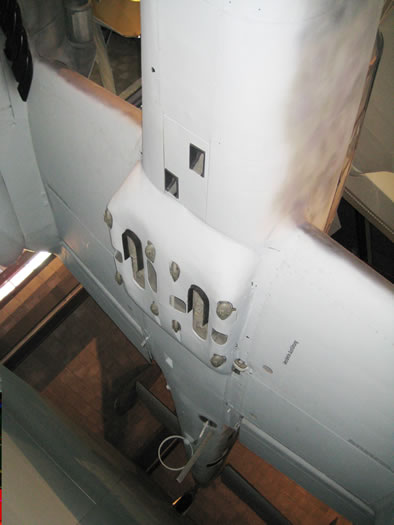

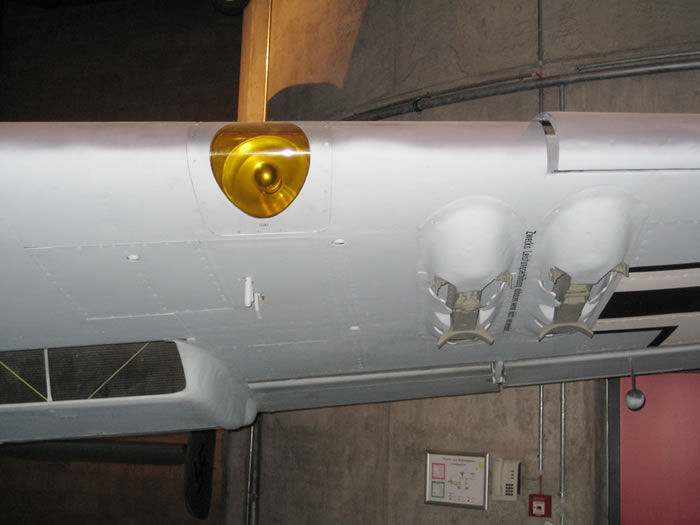

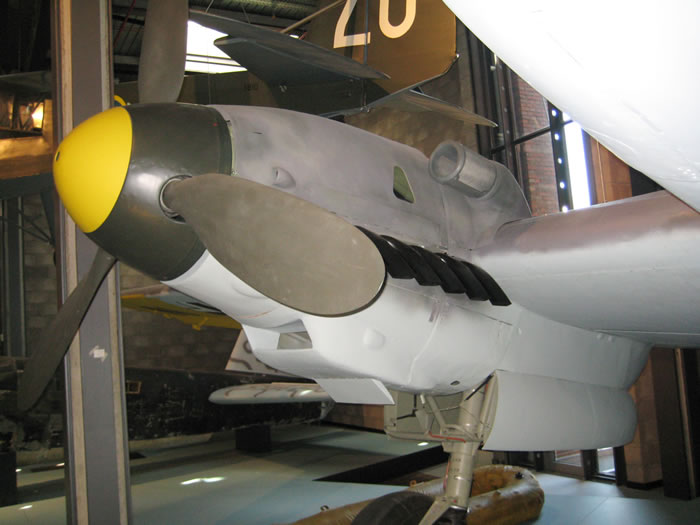

Please note that although this aircraft displays most of the characteristics of a Bf 110 F (including the large DF loop and blind landing radar under the fuselage, the early-style rear canopy, machine-gun nose and small vertical stabilisers), it is fitted with Bf 110 G cowls. The later style cowls are indicated by the triangular inspection windows and the small scoops on the front of the cowls.

Type: Messerschmitt Bf 110 F-2

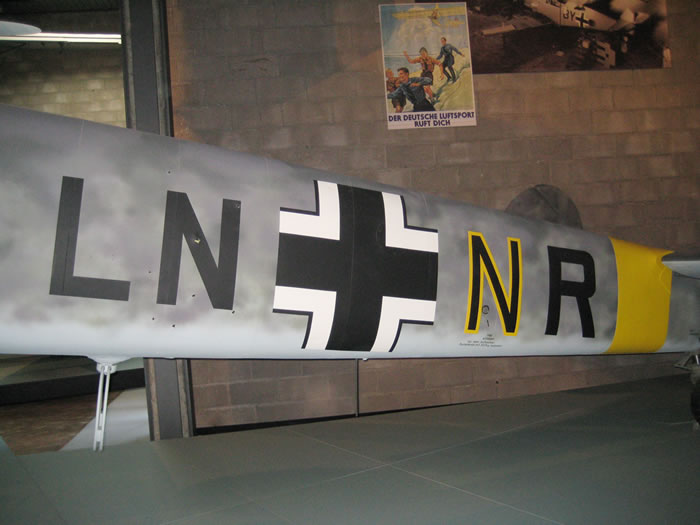

Marking: LN+NR
Squadron: 13. ZG/JG.5 Finland (so called "Dackelstaffel")
Status: damaged during attack on Russian railway – emergency-landing on frozen lake
Pilot: Helmut Ziegenhagen



  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
  • Messerschmitt Bf 110 F Close-Up: Image
