Overview of the nose wheel.

Port and starboard views.

Front and rear views.

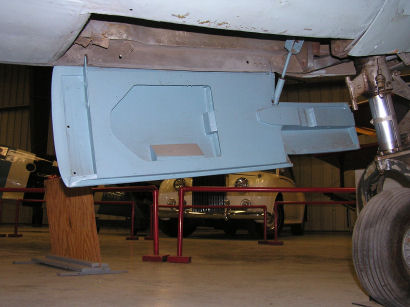

Nose gear door.

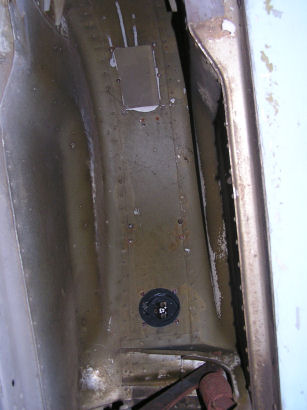

View up into nose gear wheel well towards the rear (left) and front (right). Note the rectangular window for visually checking whether the nosewheel was deployed. The dark circle in the forward part of the wheel well is the external electrical connection.
