Heinkel He 219 Cockpit

under restoration

by Jim Rotramel



Heinkel He 219 Cockpit




 Tamiya's 1/48 scale He 219 is available online from Squadron



Introduction



Here are some photographs of the cockpit of the National Air and Space Museum's Heinkel He 219 in the early stages of restoration. The colours displayed in the photos are of particular interest.





Heinkel He 219 Cockpit - Under Restoration



Click the thumbnails below to view the images full-sized.
Use your browser's Back Arrow to return to this page:

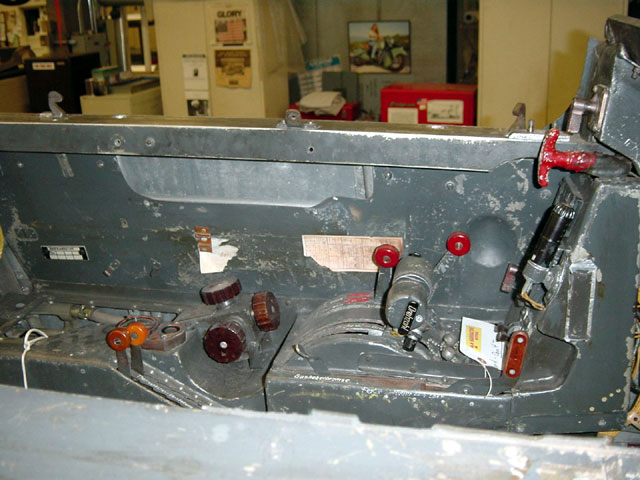

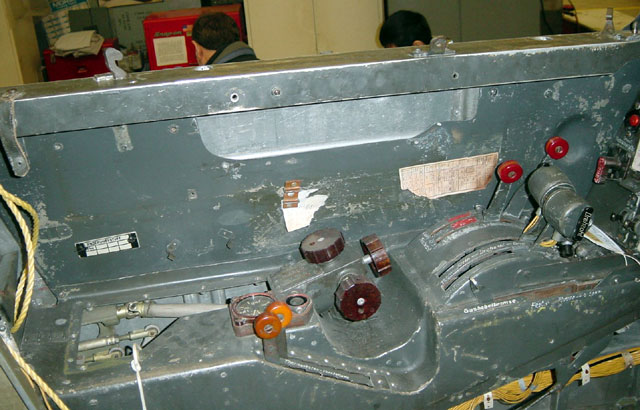

The front (pilot's) left console.

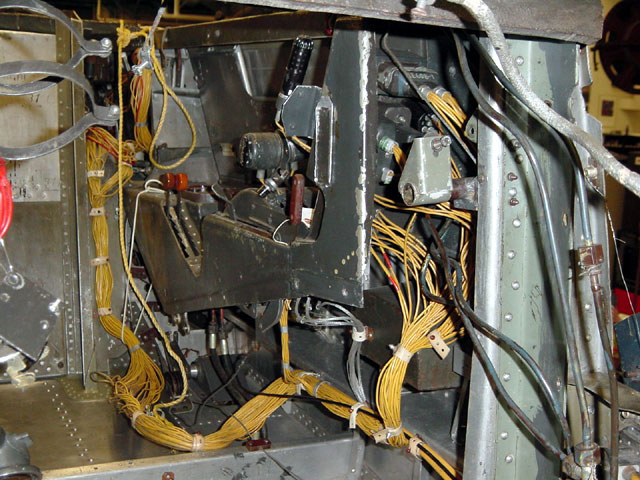

The front (pilot's) cockpit on the left side, looking aft.

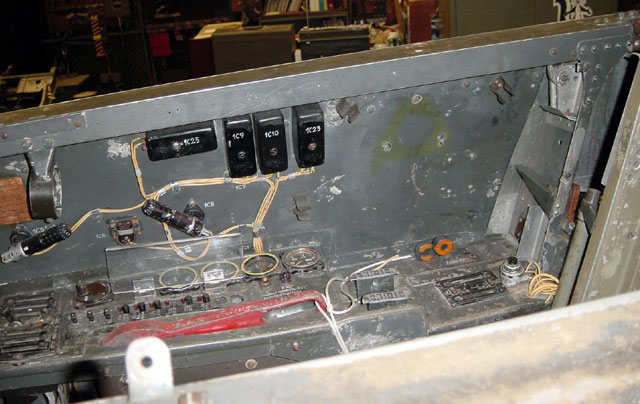

The front cockpit right side console

The front cockpit, right side, looking aft.

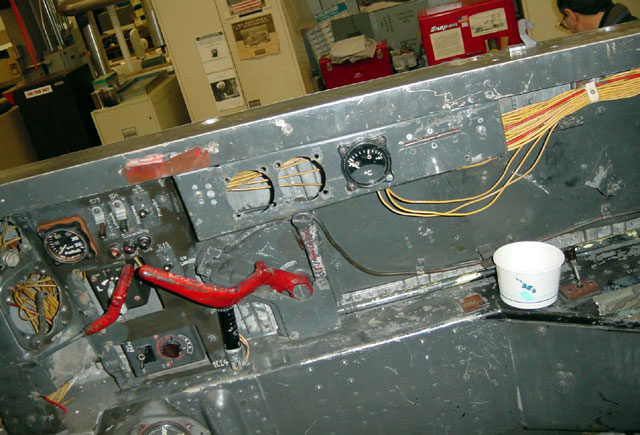

The left console of the radar operator's (rear) cockpit. The two cockpits are physically separated.

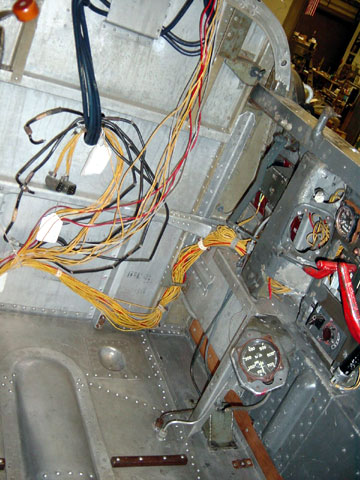

Looking aft from the left side of the rear cockpit.

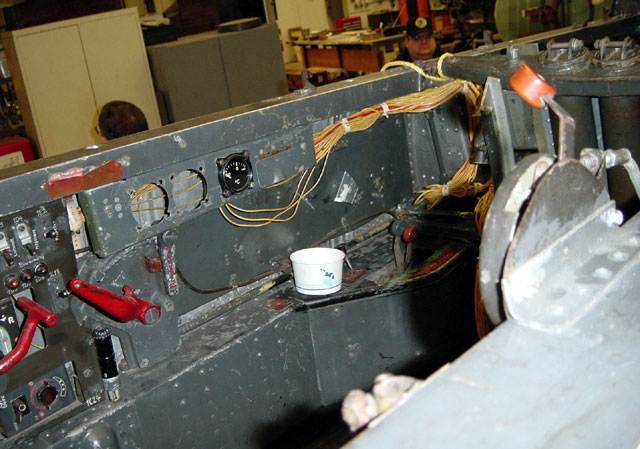

Looking forward from the left side of the rear cockpit.

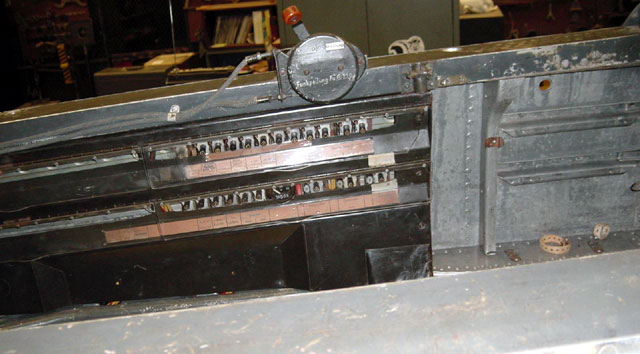

The right side of the rear cockpit.

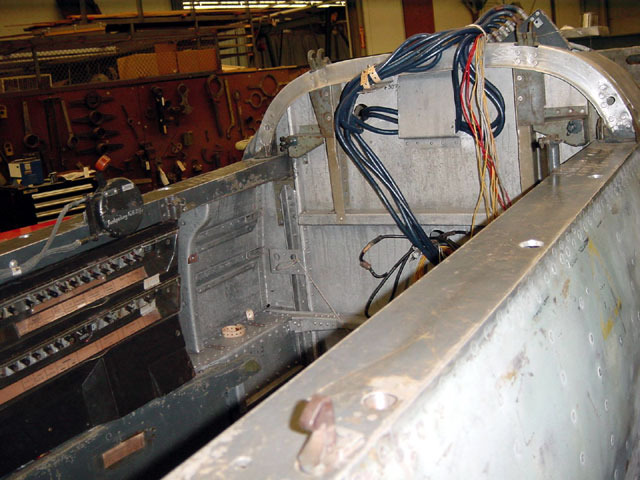

Looking aft from the right side of the rear cockpit.

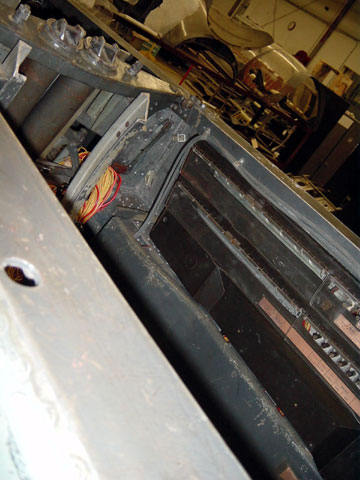

Looking forward from the right side of the rear cockpit.

Text & Images Copyright © 2001 by Jim Rotramel
