Meteor F.8 and T.7
Airframe Details Close Up

by Brett Green



Cockpit of Gloster Meteor F. Mk.8, A77-385 "Chloe"
Fighter World Museum, RAAF Williamtown




HyperScale is proudly supported by Squadron



Description



During the late 1980s and early 1990s I photographed a number of Meteors at different Museums around Australia.

The Meteor F.8 at the Fighter World Museum attached to RAAF Williamtown is beautifully restored in the Korean War colours of A77-385 "Chloe", operating with 77 Sqn RAAF (currently based at Williamtown).

A few minor details are missing (including the characteristic clear blister on the spine, covered with a small metal plate), but the aircraft is beautifully presented inside and out.

The Meteor F.8 at Narellan is much wearier, being in unrestored but fairly original condition. It is interesting to contrast the details of colours on the seats of these two similar aircraft. Harnesses and cushions are quite distinctly different.

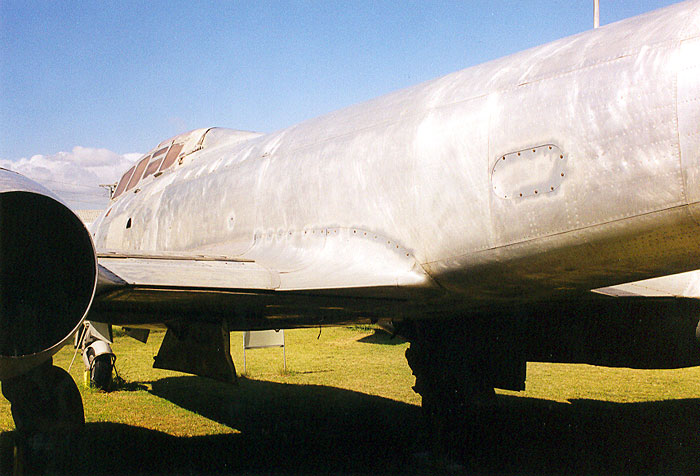

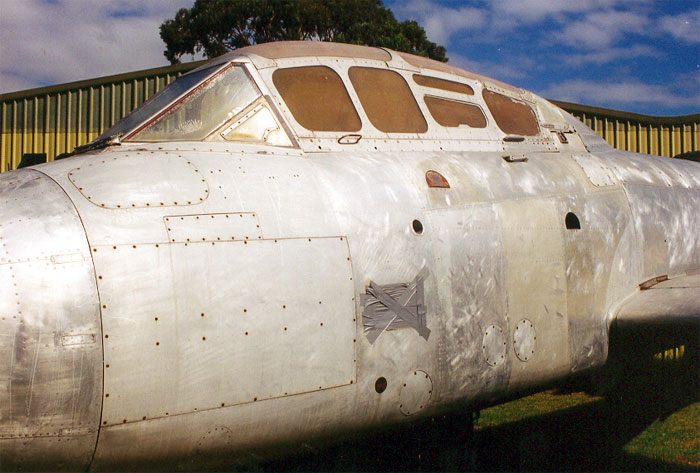

The Meteor T.7 at Moorabbin was displayed outdoors, and was stripped of its usual silver lacquer finish to reveal natural metal.

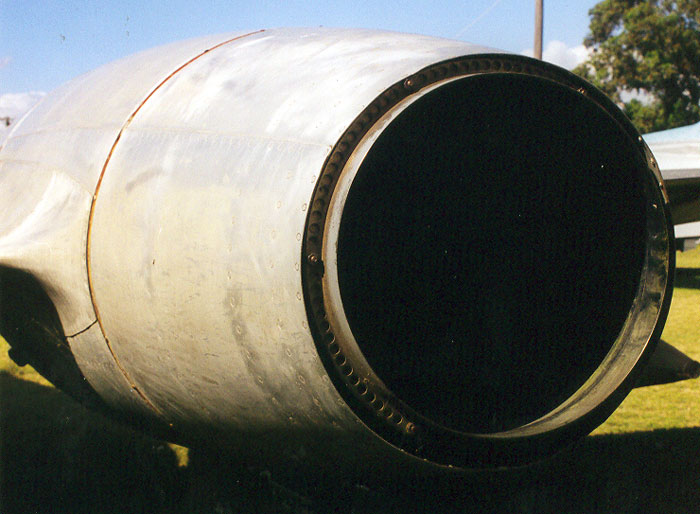

Compare the small intake on this Meteor F.7 (albeit apparently missing the forward ring of the intake) with the large intake on the Williamtown F. Mk.8. Meteors were fitted with small and large intakes during its career.





Meteor Details Close-Up



Set One - Meteor F.8
Fighter World Museum, RAAF Williamtown, NSW Australia

Click the thumbnails below to view larger images:

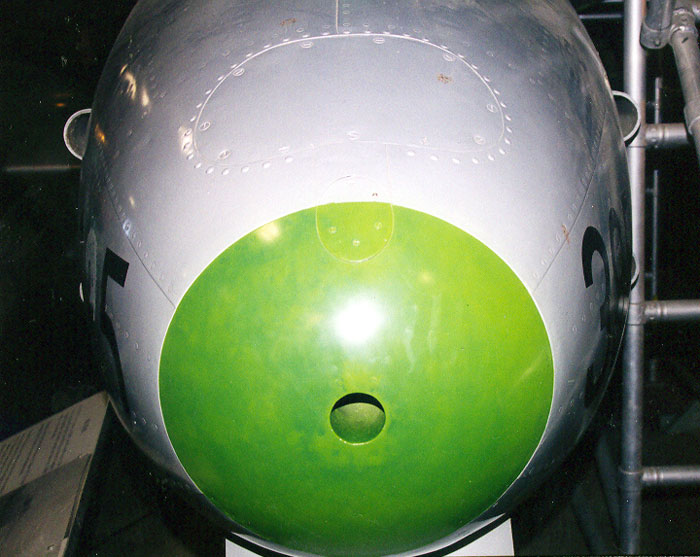

The opening for the gun camera is at the tip of the nose. The prominent blast tubes can be seen protruding from the fuselage sides

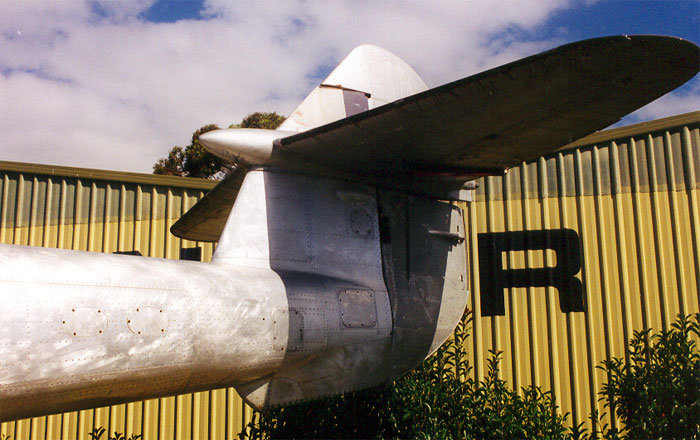

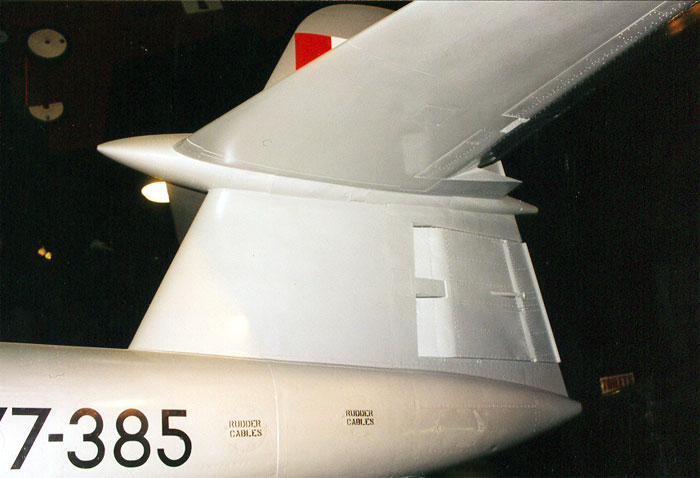

Tail and empennage

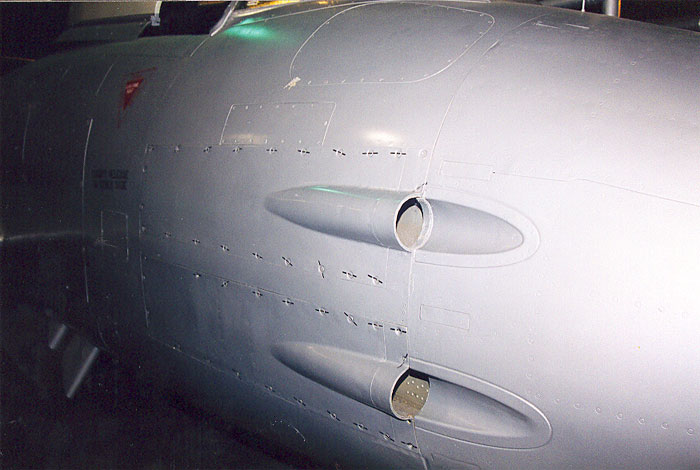

Cannon last tubes are integral to the metal of the fuselage

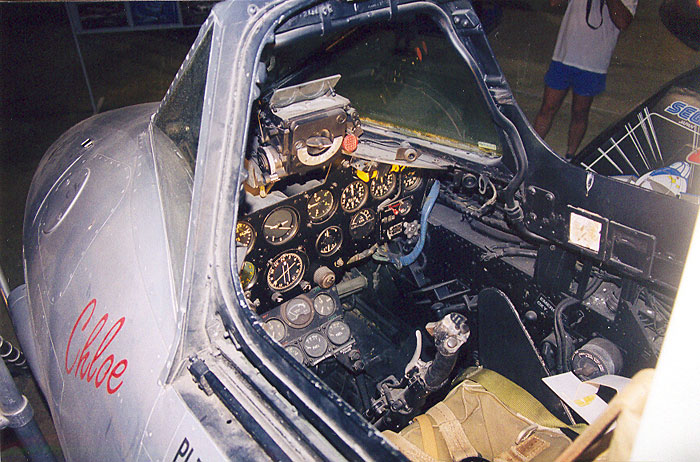

Beautifully presented instrument panel

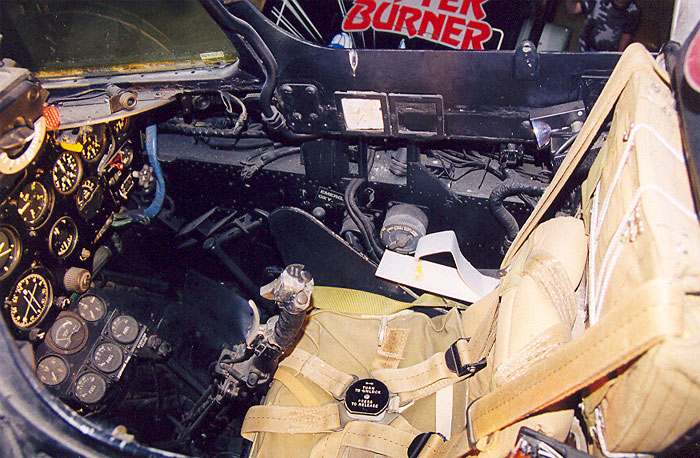

Note the colours of the cushions and harness

View from the top

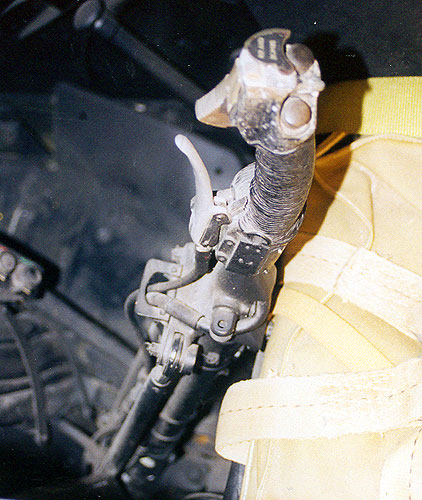

The control column

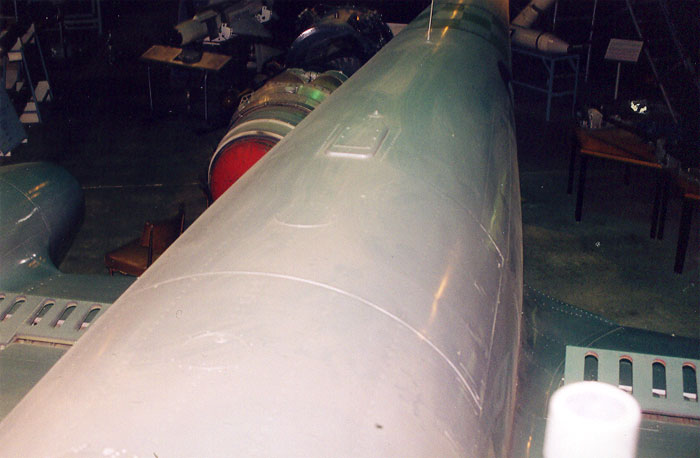

Mid-upper spine. The blister has been replaced with a tidy cover plate

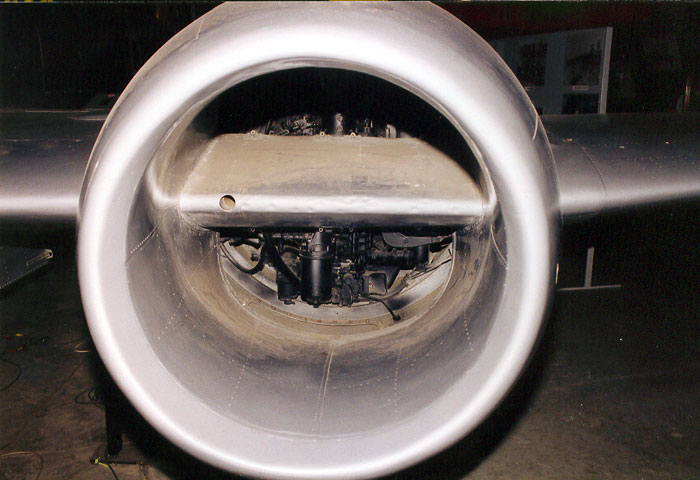

View through the large intake. Note the leading edge of the wing continues through the engine nacelle, and the engine face details clearly visible

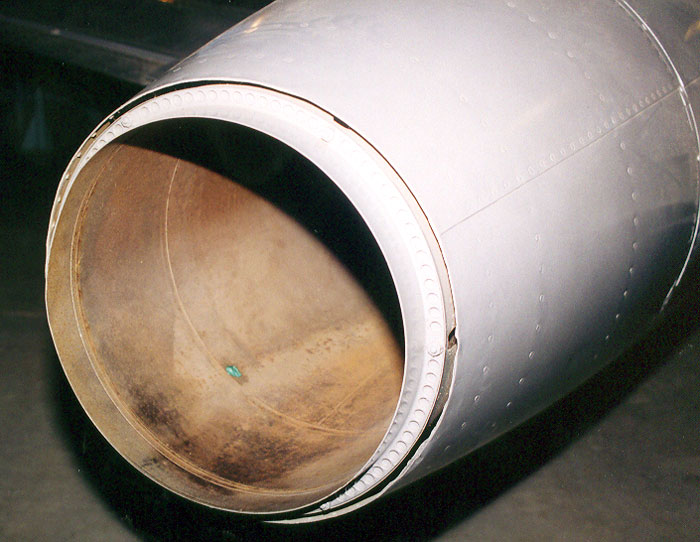

Jet pipe

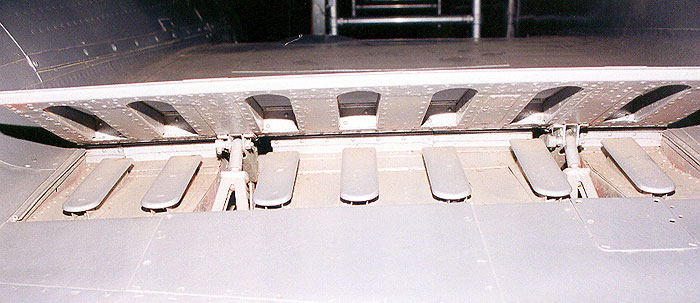

Speed brake open, viewed from the front

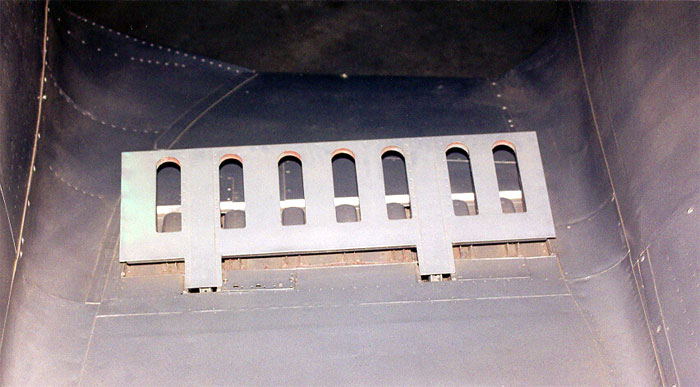

Spped brake open, viewed from the rear. Note the actuator detail.

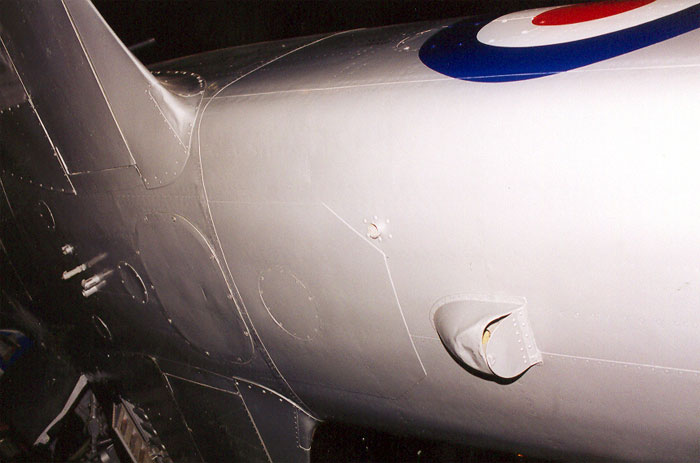

Lower rear fuselage, looking forward. Note the panel line just off-centre running to the back of the fuselage




Set Two - Meteor F.8
Camden Museum of Aviation, Narellan NSW, Australia

Click the thumbnails below to view larger images:

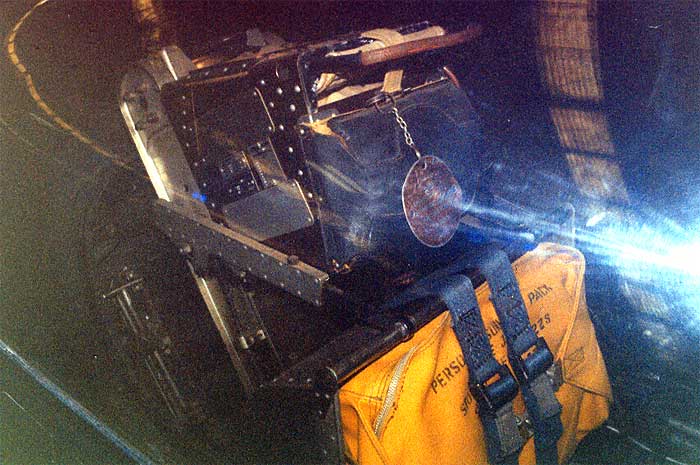

Headrest detail through closed perspex

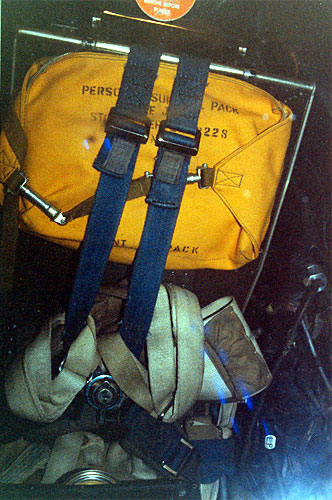

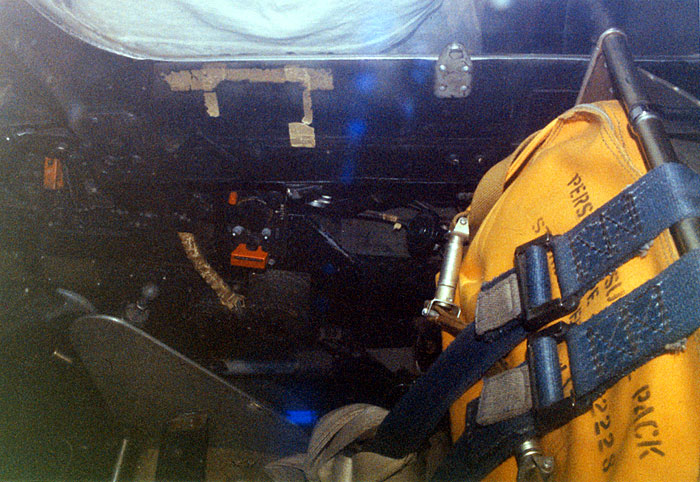

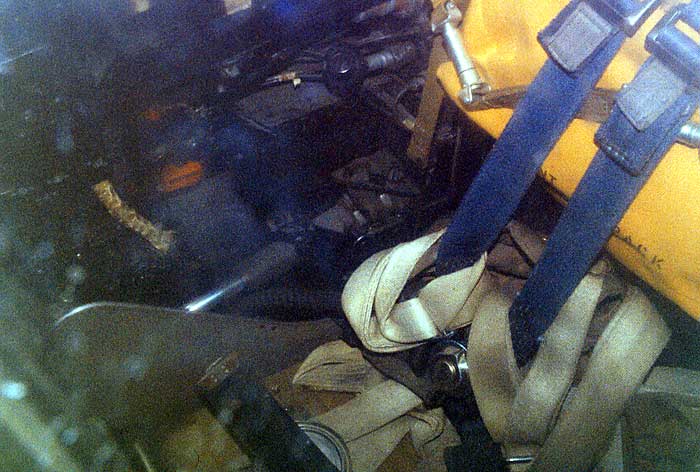

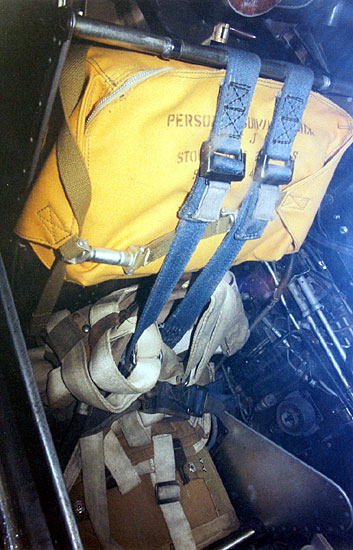

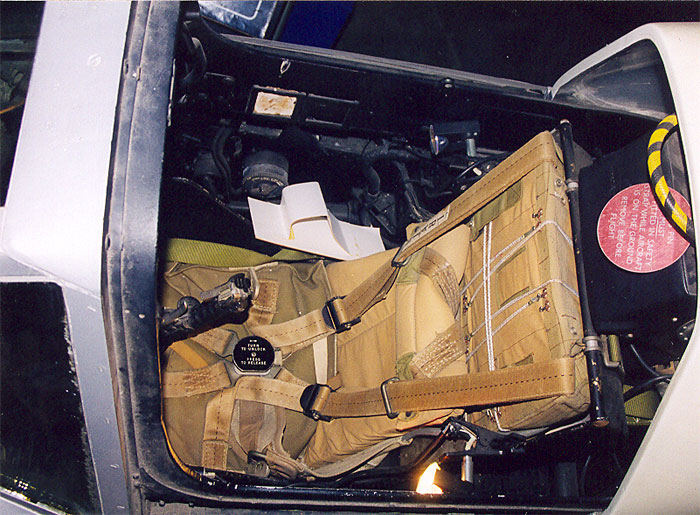

The colours and arrangement of the harness and cushions are quite different from the Williamtown Meteor F.8


Set Three - Meteor T.7
Moorabbin Air Museum, Moorabbin Airport, Meltone Victoria, Australia

Click the thumbnails below to view larger images:


Images and Description Copyright © 2002 by Brett Green
Page Created 19 August, 2003
Last Updated 19 April, 2004
